New Acoustic Design
Our engineers re-designed the subwoofer of MAUI 11 G3 entirely and it is now louder and goes deeper.
Watch the video

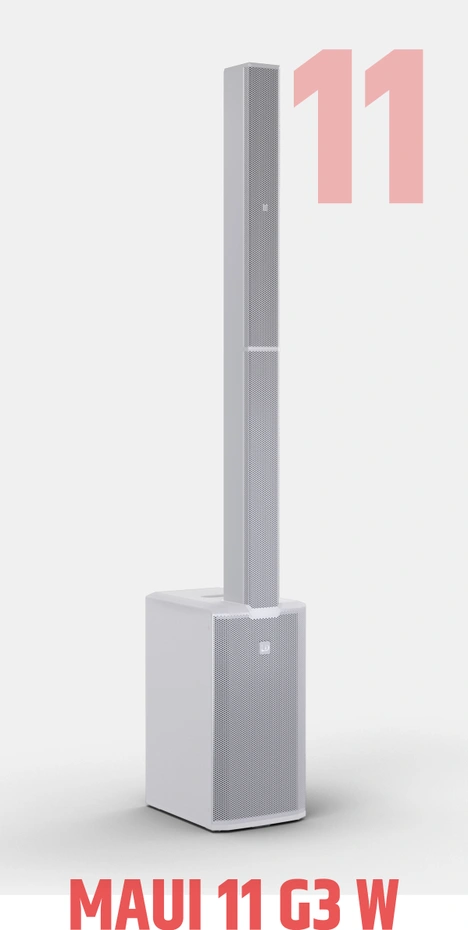

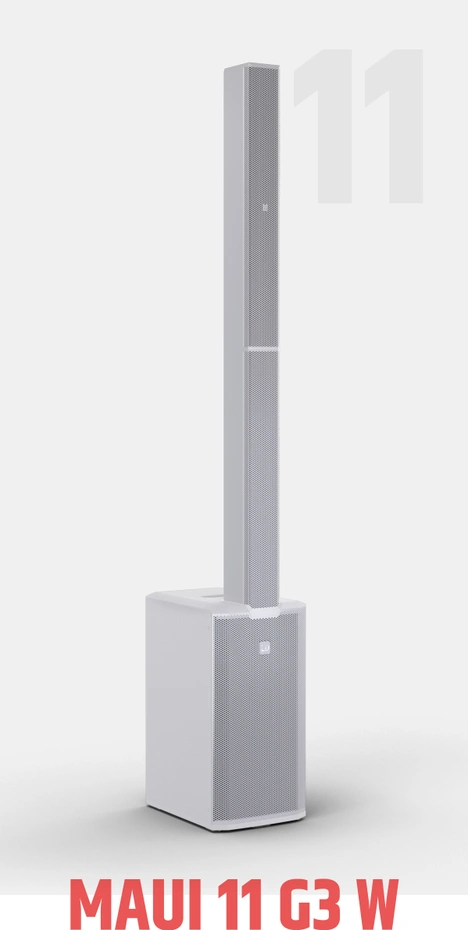

MAUI® 11 G3 W Portable cardioid column PA system, white
Item No.:
LDMAUI11G3W
Series:
MAUI
Versions:
1460 W Peak-power and 125 dB max. SPL
Powerful bass reproduction with 2 x 8" subwoofer
Balanced mids thanks to 6 x 3.5" full-range speakers
Precise and silky highs with 2 x 1" high-frequency drivers
Cardioid column for controlled low-mid and midrange sound dispersion
BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion
Optimised bass-reflex design improves bass response and reduces air flow noise
Can be combined with an additional MAUI® 11 G3 W subwoofer for increased low end or for cardioid subwoofer setups
Dynx® DSP (Gen. 2) for distortion-free sound even at maximum volume
HD Bluetooth® 5.0 streaming
Automatic setup detection for quick and easy operation
Fast and simple assembly without stands or cables
Rugged birch plywood subwoofer housing with durable polyurea-coating
Lightweight, powder-coated aluminium column housing
1460 W Peak-power and 125 dB max. SPL
Powerful bass reproduction with 2 x 8" subwoofer
Balanced mids thanks to 6 x 3.5" full-range speakers
Precise and silky highs with 2 x 1" high-frequency drivers
Cardioid column for controlled low-mid and midrange sound dispersion
BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion
Optimised bass-reflex design improves bass response and reduces air flow noise
Can be combined with an additional MAUI® 11 G3 W subwoofer for increased low end or for cardioid subwoofer setups
Dynx® DSP (Gen. 2) for distortion-free sound even at maximum volume
HD Bluetooth® 5.0 streaming
Automatic setup detection for quick and easy operation
Fast and simple assembly without stands or cables
Rugged birch plywood subwoofer housing with durable polyurea-coating
Lightweight, powder-coated aluminium column housing
Cardioid Sub setup
2 X 1" TWEETER
ON CURVED WAVEGUIDE
The sophisticated curved waveguide offers a narrow and precise vertical dispersion of 30°. This ensures that the high frequency will reach the front row of your audience just as effectively as the very back of the venue.
6 X 3,5" MID WOOFER
The column and the mid speakers of MAUI G3 are larger than in the previous versions, offering an unprecedented full range experience.
2 x 8" SUBWOOFER
The subwoofers of the MAUI® G3 series have been completely re-engineered to generate massive bass from a compact design.
And thanks to the built-in Bluetooth 5.0 input you can stream high resolution audio directly to your PA!
The Cardioid button selects the DSP setting appropriate for the subwoofer Cardioid application.
Stereo line input via XLR / Jack combo connectors.
Use the THRU line output to feed the original line input signal to an additional sound system via XLR.
The dedicated SUB output allows you to connect an additional “follower” subwoofer via XLR.
Just two controls to reach sound perfection - MAIN volume and SUB volume. That's as easy as it gets.
INPUTS AND CONTROLS
Less is more – The MAUI G3 line-in versions were designed as the ultimate headache-free PA systems. Our engineering team put great care in creating an intuitive user-panel with just the controls and inputs you really need.
The user panel features a stereo line input, a THRU line output to feed an additional sound system and a dedicated sub output allowing you to connect an additional “follower” subwoofer. You’ll also find a few controls like MAIN volume, SUB volume as well as the cardioid preset switch. And thanks to the built-in Bluetooth 5.0 input with codec you can stream high resolution audio directly to your PA!
Fill the room with sound
SUPER WIDE 120° HORIZONTAL DISPERSION
Thanks to their line array arrangement and integrated waveguides on top of the low mid speakers, the so-called phase plugs, MAUI G3 offers a super wide 120° of constant horizontal dispersion.
NARROW & PRECISE 30° VERTICAL DISPERSION
The sophisticated curved waveguide offers a narrow and precise vertical dispersion of 30°. This ensures that the HI frequencies will reach the front row of your audience just as effectively as the very back of the venue.
GET READY TO GET LOW
Down to 39 Hz
Equipped with double 8" woofers and four bass reflex ports, the MAUI 11 G3 subwoofer delivers a clear, tight and punchy low end down to 39 Hz.
Optimised Bass-Reflex Port
The new ellipsoidal bass-reflex ports improve the bass response and reduce air flow noise significantly.
High-Quality Subwoofer
The subwoofer chassis is crafted according to our strict specifications and delivers a very precise and fast response in the low end.
Add a "follower" subwoofer
Forget about Master and Slave, now it's called Main and Follower.
+6 dB low end
Simply place the "FOLLOWER" subwoofer next to your “MAIN” system facing front to enhance the bass response of +6 dB towards the audience.
Cardioid Setup
You want to build a cardioid subwoofer setup? No problem. Simply rotate the subwoofer 180°, and activate the cardioid setup on the back of the sub.
Automatic column
detection
With the automatic column detection, the subwoofer automatically enables the "FOLLOWER" mode when the column is removed and adapts the DSP settings accordingly.
Cardioid Column
Passive Cardioid Column
The 2-piece passive column of MAUI G3 has been reworked entirely and refined in many aspects. A unique feature of the new column is its passive cardioid design offering controlled low-mid and midrange sound dispersion.
-18 dB to the rear
Thanks to its exclusive design the column offers real cardioid dispersion characteristics and provides an 18 dB attenuation to the rear between 100 Hz and 1 kHz.
Acoustic Dampening Foam
The cardioid behaviour of the column is made possible by a clever use of acoustic dampening foam behind the tweeters and mid woofers within the column itself and by precise cutouts within the column aluminium housing.
Cardioid Sub setup
Put more ❤ into your sound
With an additional subwoofer you can create a cardioid setup. Simply rotate the follower subwoofer 180°, and activate the cardioid setup on the back of the sub.
-15 dB Low-End to the rea
With -15 dB bass attenuation to the rear you reduce the risks of feedback, hearing fatigue and phase cancellations significantly.
Up to 3 dB additional
low-end to the front
The cardioid setup also has the nice side effect to enhance the low-end response of 2 to 3 dB towards the audience. More bass right where you need it. And not anyhwere else.
×
![Maui G3 Mix Version Preview]()
Focus, Clarity, and Control
Focus the audio output towards your audience, reducing noise to the rear of the speakers. This results in a clearer, more enjoyable listening experience for both performer and audience.
Protect Your Hearing
Long DJing sessions can take a toll on your hearing.
Cardioid
systems help minimize hearing fatigue, allowing you to complete your
gig without risking hearing damage.
Perfect for Small and Challenging Venues
Cardioid columns and cardioid subwoofer setups shine in compact spaces where your PA system must be positioned close to a wall. By reducing wall reflections and preventing phase cancellations, cardioid setups deliver superior audio performance.
Stereo Setup
Stereo Setup - cardioid
stereo setup - sub boost
Description
Compact, powerful and easy to use - a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set!
The MAUI 11 G3 W delivers a huge, powerful and precise sound featuring 730 W RMS power (1,460 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more.
With its sleek and elegant design, the MAUI 11 G3 W looks very appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 6 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the BEM-optimised waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.
The LD Systems engineers also took great care of the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field.
The columns of the MAUI 11 G3 W are designed as cardioid units. This allows for controlled low-mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound. Equipped with two 8'' woofers and four bass reflex ports, the MAUI 11 G3 W subwoofer delivers a clear, tight and punchy low end down to 39 Hz. By using a second subwoofer, the bass response can also be increased of up to 6 dB and it can also be driven in cardioid configuration at the push of a button (cardioid preset). In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.
The MAUI 11 G3 W is a real sound machine, yet also convinces with its smart features in the day-to-day life of DJs, musicians, and technicians. Thanks to Bluetooth 5.0 the column PA becomes even more versatile. Transport is as easy as usual, while the hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily...
Specifications
General
Product type
PA Complete Systems
Type
Powered
Color
White (RAL 9003)
Max. SPL (Peak)
125 dB
Frequency response (-10dB)
39 Hz - 20000 Hz
Dispersion (H x V)
120° x 30 °
Total Height
2052 mm
Weight
30,7 kg
Features
Bluetooth Audio Streaming,
Cardioid column,
DSP-based Signal Processing,
Excellent Sound Dispersion,
Mono/ Stereo Application
Subwoofer
Woofer dimensions
2 x 8 "
Woofer dimensions (mm)
2 x 203 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil (inch)
2 "
Woofer voice coil (mm)
50.8 mm
Cabinet construction
Bass Reflex
Housing material
15 mm Multiplex
Cabinet surface
Polyurea
Dimensions Subwoofer (W x H x D)
305 x 607 x 403 mm
Subwoofer weight
20.5 kg
Mid/Hi System
Midrange dimensions
6 x 3.5 "
Midrange dimensions (mm)
6 x 89 mm
Midrange magnet
Ferrite
Midrange brand
Custom-made
Midrange voice coil
0.75 "
Midrange voice coil
19 mm
Tweeter dimensions
2 x 1 "
Tweeter dimensions (mm)
2 x 25.4 mm
Tweeter magnet
Neodymium
Tweeter brand
Custom-made
Tweeter voice coil
1 "
Tweeter voice coil (mm)
25.4 mm
Wave Guide
CD Waveguide
Loudspeaker inputs
1
Speaker input connections
Custom-made multipin
Cabinet construction mid/high
Passive Cardioid
Mid/Hi system cabinet material
Aluminium
Mid/Hi system cabinet surface
Powder-coated
Mid/Hi system width
103 mm
Mid/Hi system height
1460 mm
Mid/Hi system depth
135 mm
Mid/Hi system weight
10.2 kg
Amplifier module (integrated in subwoofer)
Amplifier
Class D
System output (RMS)
730 W
System output (Peak)
1460 W
Protection circuits
DC protection,
Multiband limiter,
Short circuit,
Thermal protection
Cooling
Convection
Controls
Bluetooth HOLD TO LINK button,
Cardioid On/Off,
Main level,
Power On/Off,
Sub level
Indicators
Bluetooth,
Cardioid On/Off,
Follower mode,
Limit,
Power,
Protect (protection circuit engaged),
Signal,
Subwoofer Mode
Mains connector
PowerCon
Operating voltage
100 V AC - 120 V AC, 50 - 60 Hz,
220 V AC - 240 V AC, 50-60 Hz
Fuse
T 3.15AL / 250 V
Power consumption
300 W
Ambient temperature (operating)
0 - 40 °C
Relative Humidity
< 80% (non-condensing)
Line Inputs
2
Line Input Connectors
Combo XLR / TRS
Line Outputs
1 x Sub OUT,
2 x THRU
Line Output Connectors
XLR male
Number of speaker outputs
1
Loudspeaker Output Connectors
Custom-made multipin
Bluetooth Standard
A2DP
Bluetooth Audio Decoder
AAC,
SBC
DSP characteristics
Bit depth AD/DA converter
24 bit
Sampling frequency
48 kHz
Downloads & links
Stories
20. Jun 2023
Award-winning product design – 2023 Red Dot Design Awards for LD Systems & Cameo
18. Dec 2023
LoL in clear sight – LD Systems provides sound for the League of Legends World Championship in Seoul
14. Dec 2023
Clean sound underground – LD Systems provides sound for VANS pop-up event in Seoul
Easy & Safe Transport
Ergonomic handles
The subwoofer is easy to carry thanks to two integrated, ergonomic and generously sized handles. One handle on the top, one on the bottom.
Hidden handles in the caps
The columns also feature hidden handles in the caps that allow for a good grip when building the system up and back down.
transport accessories
MAUI G3 should follow you anywhere you go, which is why we offer optional transport accessories such as a cover for the subwoofer, a shoulder bag for the columns as well as a castor board allowing you to roll your system into the venue without breaking a sweat.
