CWMS 42 B 100 V 4" 2-way wall mount speaker 100 V black (pair)

Item No.: LDCWMS42B100V
Series: CONTRACTOR
Versions:
Compact wall speaker
4" woofer
0.75" high-frequency driver
20 watts continuous power
Frequency range up to 20 kHz
High speech intelligibility
Black or white version

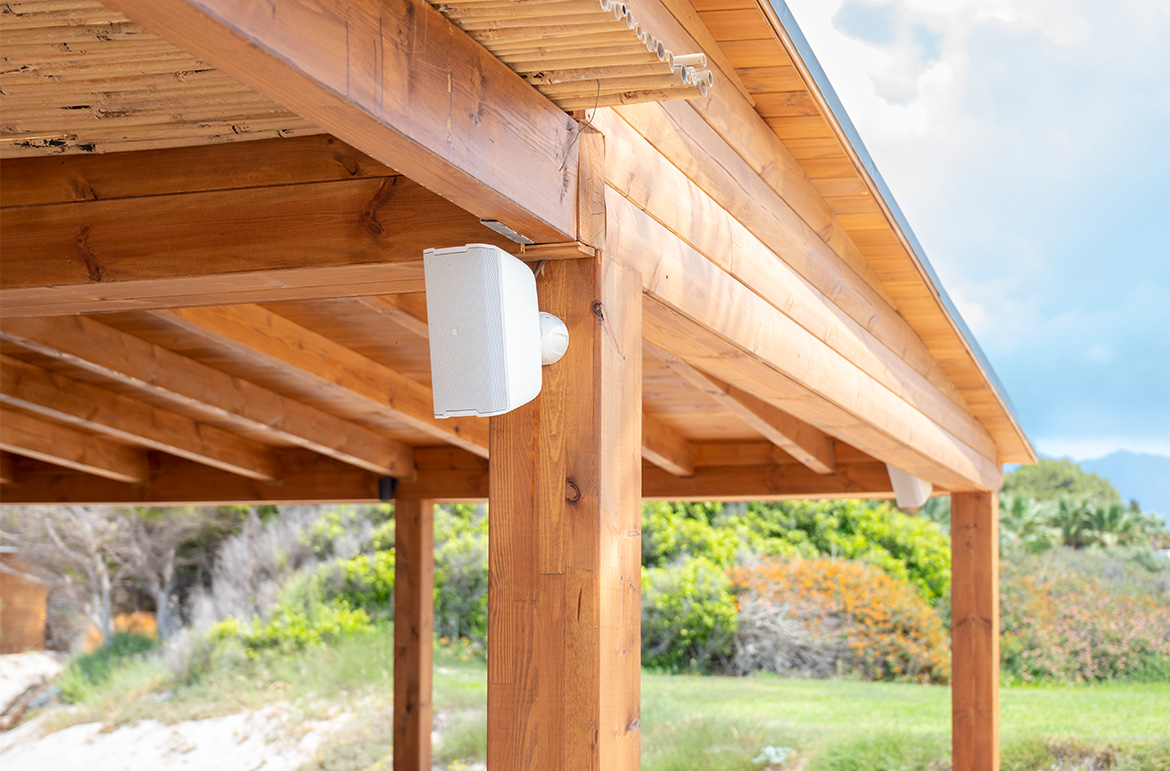

For hotels, restaurants, bars, lounges, shopping centres, conference rooms etc.
Also available as a 100 V version


Contents and categories

Display all

Contents and categories

Series

Search suggestions

Display all results
Compact wall speaker
4" woofer
0.75" high-frequency driver
20 watts continuous power
Frequency range up to 20 kHz
High speech intelligibility
Black or white version
For hotels, restaurants, bars, lounges, shopping centres, conference rooms etc.
Also available as a 100 V version
Description

The CONTRACTOR CWMS 42 is an elegant wall speaker with a 4" woofer, and a 0.75" tweeter, reaching a frequency response up to 20 kHz. It convinces with high speech intelligibility and achieves a sound pressure level of 87 dB at 1 W / 1 m with a power capacity of 20 watts of continuous power. It is designed for a wide scope of applications, providing a discreet sound in hotels, restaurants, bars, lounges, training and conference rooms, shopping centres and at home. The CWMS 42 is available in white (CWMS 42 W) and black (CWMS 42 B).

For ELA systems, both versions are also available as 100 Volt versions (CWMS 42 W 100 V, CWMS 42 B 100 V).

As bass extension, we recommend the CIW SUB 10.

Specifications
General
Product type
Installation Loudspeakers
Type
Wall-mounted Loudspeaker
Version
Wall-mounted Loudspeaker
Speaker type
2-way speaker
Color
Black
Woofer dimensions
4 "
Woofer dimensions (mm)
102 mm
Tweeter dimensions
0.75 "
Tweeter dimensions (mm)
19 mm
Impedance (low-impedance)
8 Ohm(s)
100 V Inputs
1.25 W, 10 W, 2.5 W, 5 W
Frequency response
90 - 20000 Hz
Sensitivity (1 W / 1 m)
87 dB
Low-impedance rated load (RMS)
20 W
Width
253 mm
Height
156 mm
Depth
135 mm
Weight
3,53 kg
Downloads & links
Name
Category
Type
File size
User's manual Manual pdf 2 MB
Tender documents Tender Specifications zip 162 KB
Product images Image files zip -
User's manual

Category: Manual

Type: pdf

File size: 2 MB

Tender documents

Category: Tender Specifications

Type: zip

File size: 162 KB

Product images

Category: Image files

Type: zip

File size: -

(0) Download files
Buy

For a quote on this item, please contact our sales department or make an appointment with our sales representatives.
